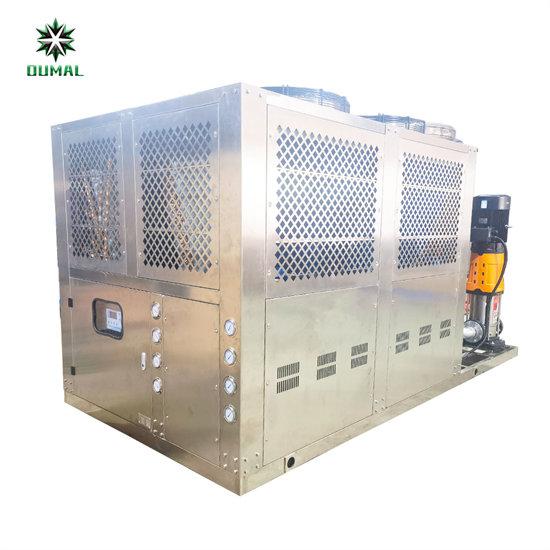

40HP Air Cooled Water Chiller 304 Stainless Steel Casing
This 40HP air-cooled chiller is a high-quality chiller customized for customers. It uses an external enlarged water tank, including an internal circulation pump and an external circulation pump. It is easy to install and can be used after connecting the pipes. The chiller chassis is made of 304 stainless steel and has a long service life. This stainless steel chiller can also be used in the food industry or the medical industry. Shenzhen Oumal Refrigeration Machinery Co., Ltd. specializes in industrial chillers and accepts non-standard customization. Provide customers with high-quality chillers. Welcome to contact us to customize your exclusive chiller. We will definitely help your chiller system with preferential chiller prices and high-quality products and services.
Chiller is a kind of water cooling equipment that can provide constant temperature, constant flow and constant pressure. The principle of the chiller is to inject a certain amount of water into the internal water tank of the machine, cool the water through the chiller refrigeration system, and then use the water pump inside the machine to inject low-temperature frozen water into the equipment that needs to be cooled. The chilled water transfers the heat inside the machine. Take it away and return the high-temperature hot water to the water tank for cooling. This cycle exchanges cooling to achieve the cooling effect of the equipment.
Air-Cooled Industrial Chiller Products Features
1. The compressor of this unit adopts a scroll-type fully enclosed compressor and electronic control components, and is equipped with a condenser and evaporator made of high-efficiency and high-quality copper tubes for heat exchange.
2. Equipped with various safety protection devices, it has stable performance, low noise, long service life and simple operation; it adopts LCD display human-machine interface, which makes operation simple and convenient, and the operating status is clear at a glance.
3. This model adopts a single compressor or multi-compressor combined refrigeration system. The compressors can automatically run alternately according to load changes, balancing the operating hours of each compressor to save energy and extend the service life of the chiller. Energy adjustment is convenient, and partial load is more energy-saving.
4. The whole machine shell has beautiful appearance and compact structure. The operation of the unit can be checked at any time; the unit can provide its own water tank and circulating water pump according to the cooling capacity, without the need for cooling towers and cooling water pumps, making installation and maintenance easy.
More Pictures of Air Cooled Chiller
Application of Air-Cooled water Chiller
As Air Cooled Type Chiller No Need to Use Cooling Tower, It's easy installation and moving, Scroll type chiller air cooled industrial chiller is widely used in plastic industry: such as injection molding machines, extruding machines, Stretch film machines, bottle blowing machines; electroplate industry, Medical chillers, laboratory chillers, Electronics industry, textile industry.....
40 HP Air chiller Products Specification
| Model Item | OMC-40A | ||
| Cooling Capacity | KW | 108 | |
| Kcal/h | 92880 | ||
| Ton | 30.7 | ||
| Btu/h | 368601 | ||
| Input Power | KW | 36 | |
| Power supply | 3PH-380V 50Hz | ||
| Temperature Range | ℃ | 5-35 | |
| Refrigerant | Type | R22（R407C/R410A/R134A） | |
| Compressor | Control Mode | Expansion Valve | |
| Type | Piston Type / Scroll Type | ||
| Power | KW | 30 | |
| Chilled water | Tank Volume | L | 630 |
| Tank Material | SUS304 Stainless Steel | ||
| Pipe Diameter | Inch | 3 | |
| Pump | Lift | m | 20 |
| Power | kw | 4 | |
| Evaporator | Type | Tank with coil（Shell and Tube） | |
| Chilled Water Flow | m³/h | 18.6 | |
| Condenser | Type | High efficiency copper condensing coil with Aluminum+Spiral axial flow fan | |
| Cooling Water Flow | m³/h | 40000 | |
| Dimension | Length | mm | 2430 |
| Width | mm | 1185 | |
| Height | mm | 1710 | |
| Weight | KG | 1360 | |
| Safety Protection: Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, reversed and lacking phase protection, exhaust overheating protection. | |||
Scroll Type chiller Packing & Shipping
FAQ
Q1:Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:
1)Cooling capacity;
2)chilled water inlet and outlet temperature
3)chilled water flow
4) Refrigerant;
5) Ambient temperature;
6)Voltage;
7) Be used for what industry?
8)Any other special requirements?
Q2:How to ensure your product with good quality?
A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.
also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users
Q3:What's the warranty?
A3: 15 months warranty for free if confirmed by both side damage in the quality reason.
Q4:What’s your payment term?
A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.
Q5:Are you a manufacturer?
A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance .
The control box design make the unit safety and stably.
Q6:How can i Place an order ?
A: Click Below to fill the table or Call 0086 15112554736
